Why Objective Lens Size Matters in LPVOs - Especially 1-10x FFP

Why Objective Lens Size Matters in LPVOs - Especially 1-10x FFP

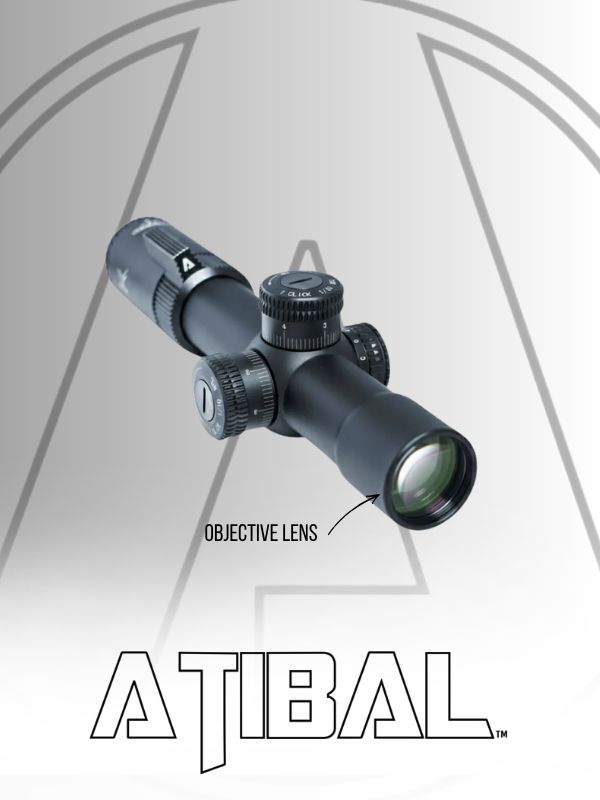

The objective lens is the front lens of your scope, the one facing your target. Its diameter (measured in millimeters, like 24mm, 30mm, 28mm, etc.) determines how much light enters the optical system. In a 1-10x FFP LPVO, this becomes critically important for several interconnected reasons.

1. Exit Pupil: The "Light Hose" Effect


Exit pupil is the beam of light that exits the eyepiece and enters your eye. You calculate it simply by dividing the size of objective lens divided by the highest level of magnification, in this case 10x.

Why this matters for 1-10x:
Objective Size At 1x At 10x
24mm (Vortex Razor) 24mm 2.4mm
28mm (EOTech Vudu) 28mm 2.8mm
30mm (Atibal X) 30mm 3.0mm

At 1x magnification, any objective size gives you a massive exit pupil (larger than your eye's pupil), so low-light performance is similar. But at 10x magnification, the difference becomes dramatic:
  • 2.4mm exit pupil (24mm obj): Like looking through a drinking straw—dim, unforgiving eye position
  • 3.0mm exit pupil (30mm obj): 56% more light gathering area—brighter, more forgiving
Your eye's pupil dilates to about 5-7mm in darkness. At 10x, only the 30mm+ objectives get close to matching this, meaning more usable light reaches your retina in dawn/dusk conditions.

2. Resolution & Detail at Distance

A larger objective lens doesn't just gather more light—it provides better resolution through optical physics:



  • Larger aperture = better diffraction limit: The scope can resolve finer details at maximum magnification
  • At 10x on a 24mm objective: You're pushing the optical limits—edges get fuzzy, fine reticle details blur
  • At 10x on a 30mm+ objective: The glass has more "room" to resolve target details and reticle subtensions
This is especially critical for FFP reticles, where the reticle shrinks at low magnification and expands at high magnification. At 10x, you need that extra resolution to see fine holdover points and windage marks clearly.

3. The Critical Caveat: Size Without Quality Means Nothing

Here's the trap many budget optics fall into: Slapping a large objective lens on a scope with mediocre glass is like putting a garbage bag behind a picture window—you've got plenty of area, but the view still looks like trash.
Large objectives amplify optical flaws:
  • Chromatic aberration (color fringing) becomes more noticeable at the edges
  • Poor coatings waste that extra light gathering with reflection and glare
  • Cheap glass scatters light internally, creating haze and reducing contrast
  • Edge distortion turns the periphery into a funhouse mirror effect
A 30mm objective with $50 worth of Chinese BK7 glass and basic coatings will get handily outperformed by a 24mm objective with premium ED glass and multi-layer coatings. The larger lens just gives you a bigger, blurrier, more distorted image.

4. How the Atibal X Solves This: Hoya Japanese ED Glass

The Atibal X doesn't just win on objective size—it wins on glass quality. Atibal specifies Hoya Japanese ED (Extra-Low Dispersion) glass for the X series.

Why Hoya ED glass matters:

Feature Hoya ED Glass Standard Crown/Flint Glass
Dispersion Control Excellent—minimizes chromatic aberration Poor—color fringing at high contrast edges
Light Transmission 90%+ with proper coatings 80-85% typical
Clarity Razor-sharp edge-to-edge Softens toward edges
Color Fidelity True, neutral color reproduction Yellow/blue tints common
Durability Scratch-resistant, stable More susceptible to defects

5. FFP-Specific Challenges: Reticle Visibility

First focal plane reticles change size with magnification. This creates unique demands:
At 1x:
  • Reticle appears small, bold outer ring essential for speed
  • Larger objective helps maintain brightness with the "shrunken" reticle
At 10x:



  • Reticle is fully expanded, showing full subtension details
  • Fine milling lines and hash marks require excellent optical clarity to be usable
  • Larger objectives provide the resolution necessary to see these details without them appearing as blurry blobs
With Hoya ED glass, the Atibal X preserves razor-sharp reticle definition for accurate ranging and holdovers—something budget 30mm scopes simply cannot deliver.

6. Eye Box Forgiveness

Eye box is the area behind the scope where you can see the full field of view. At 10x magnification, eye box becomes notoriously tight on LPVOs.
Larger objectives generally correlate with:
  • More forgiving eye relief (critical for rapid shooting positions)
  • Better field of view at maximum magnification
  • Less "blackout" when your head shifts slightly under stress or unconventional shooting positions
For a 1-10x that must work equally well on a CQB carbine and a precision rifle, this forgiveness is operational critical.


7. The Atibal X Advantage: 30mm + Hoya ED vs. The Competition

Here's how the Atibal X's 30mm objective with Hoya ED glass stacks up:
Scope Objective Glass Quality Weight Exit Pupil @10x Best For
Vortex Razor Gen III 1-10x 24mm Premium (LOW ED) 21.5 oz 2.4mm Weight-conscious
EOTech Vudu 1-10x 28mm Good (XC™ HD) 20.1 oz 2.8mm Balance
Atibal X 1-10x 30mm Hoya Japanese ED 21 oz 3.0mm Light/Resolution/Value
Budget 1-10x (generic) 30mm+ Cheap BK7/standard Varies 3.0mm+ Avoid—big lens, cheap glass

The Atibal X hits a sweet spot: significantly better light gathering than the Razor (56% larger exit pupil at 10x), competitive weight, and glass quality that actually utilizes the aperture. Unlike budget scopes that use large objectives as marketing bait, the Atibal X delivers premium optical performance without premium weight or price penalty.

8. Practical Shooting Implications

Scenario 1: Last Light Hunting
  • Legal shooting light fading
  • 10x needed to identify target/antlers
  • 30mm objective + Hoya ED extends usable hunting time vs. 24mm premium or 30mm budget glass
Scenario 2: Indoor/Outdoor Competition
  • Moving from bright sunlight to shadowed bays1x for close targets, 10x for distant
  • ED glass controls chromatic aberration when transitioning between high-contrast environments
Scenario 3: Tactical/Duty Use
  • Positive target identification at distance in suboptimal light
  • FFP reticle for ranging at any magnification
  • Need both speed (1x) and precision (10x) with consistent brightness and no color fringing

The Bottom Line

In a 1-10x FFP LPVO, objective lens size directly impacts:

✅ Low-light performance at maximum magnification
✅ Reticle clarity for precise holds and ranging
✅ Eye box forgiveness under stress
✅ Resolution for target identification at distance

BUT—and this is critical—only if the glass quality matches the aperture.
The Atibal X's 30mm objective with Hoya Japanese ED glass represents the complete package: size that gathers light, quality that preserves it. While competitors compromised with 24mm objectives to save weight or cost, and budget brands slap big lenses on cheap glass for marketing appeal, Atibal recognized that a 1-10x scope lives or dies by its 10x performance—and that requires both aperture and optical excellence.

When you're glassing for targets at last light or holding windage on a small plate at 500 yards, that extra 6mm of objective diameter with Hoya ED glass isn't a luxury—it's the difference between seeing your shot clearly and squinting through a hazy, fringed guess.
Experience the difference yourself: Atibal X 1-10x30 FFP — where 30mm of Hoya Japanese ED clarity meets true 1-10x versatility.
